Cobot Gripper IR40-50

Name: Cobot Gripper IR40-50
Brand: Inlux Robotics
Price: 565.00 GBP
Availability: InStock

£565.00

Product variants

Description

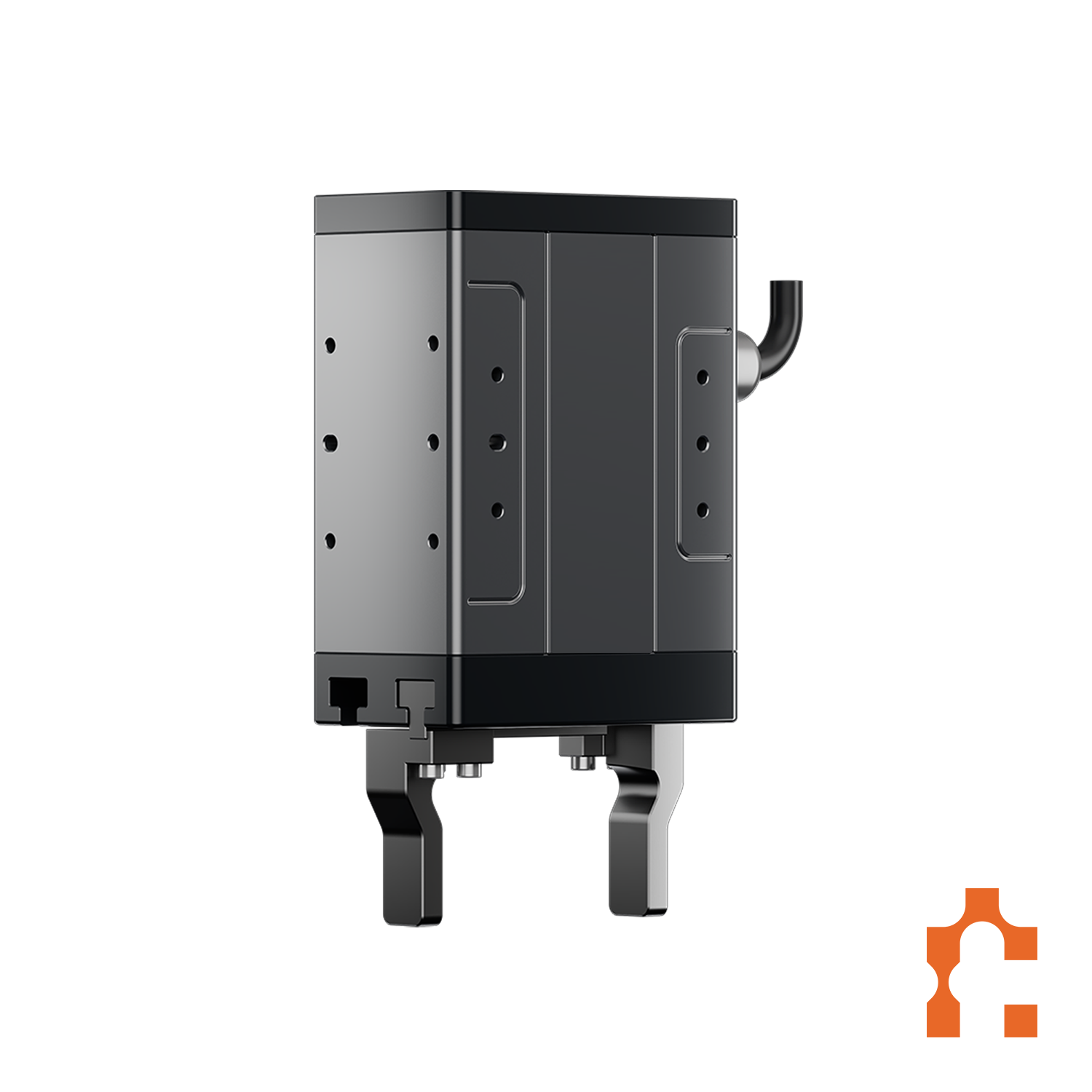

The IR40-50 Gripper is an optional addition, ideal for applications that require gripping and releasing objects. The position, speed, and gripping force of the gripper can be easily adjusted via the web interface. Additionally, the gripper arm parts can be replaced with custom 3D-printed pieces, allowing the gripper to be adapted for any specific application.

Specifications & Included

Specifications:

Range: 0-40 mm
Force: 2-50 N

Included:

Cobot Gripper IR40-50
Gripper Fingers

Downloads

Cobot Gripper IR40-50 Datasheet - 2D Drawing

Cobot Gripper IR40-50 STEP 3D Model

Would you like to order?

Order: You can place your order directly through our website or you can submit a request by contacting us.

Prices Excluding VAT: 0% VAT for companies in the EU, excluding the Netherlands, intra-community delivery.

Delivery Time: The delivery time depends on the item. If the item is in stock, it will be shipped within 1 to 2 business days.

Request Quote

FAQs

Check out our FAQs page for even more questions and answers.

Is this gripper compatible with Fairino cobots?

Yes, this gripper is fully plug-and-play compatible with Fairino cobots. Both the control and the functionalities are directly integrated into the Fairino web interface.

What control options are available through the Fairino software?

The gripper can be controlled by position, speed, and force. This gives you full control over the gripping process and allows the gripper to be precisely adjusted to your application.

Can two grippers be operated simultaneously?

Yes, with a custom splitter cable, two or more grippers can be used simultaneously, for example in combination with a dual tool adapter.

Are the gripper fingers included as standard?

If the fingers are visible in the product photo on our website, they are included by default. If they are not shown, you need to provide suitable fingers yourself. The fingers are always detachable.

Can custom fingers be installed?

Yes, the standard fingers can easily be replaced with custom fingers. These can, for example, be 3D printed or milled from metal. We can handle this engineering process for you if desired.
